• Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 158348
    • alternative name: Rogers Radio Tube

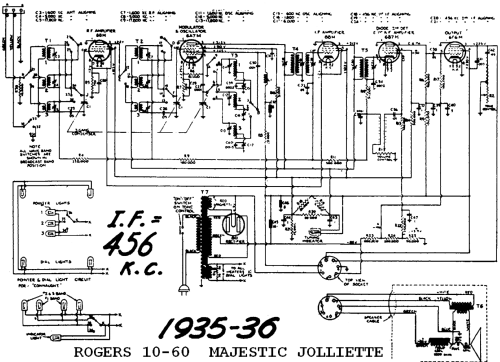

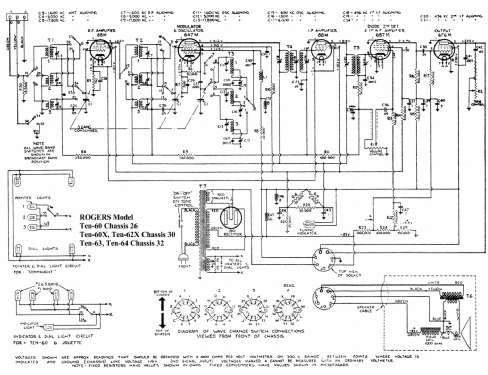

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Rogers Ten-60 Ch= 26 - Rogers-Majestic, Standard
  • Dimensions (WHD)
  • 16 x 21 x 12 inch / 406 x 533 x 305 mm
  • Notes
  • Cabinet by Knechtel Furniture Co. Ltd. Hanover, Ontario, Canada. The Majestic Jolliette and De Forest Connought are electronically identical to this model.
  • Net weight (2.2 lb = 1 kg)
  • 45 lb (45 lb 0 oz) / 20.430 kg
  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Rogers-Majestic section page 15
  • Author
  • Model page created by Robin Roeckers. See "Data change" for further contributors.
