• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158402

• • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K7M 6A7M 6K7M 6F7M 75M 6F6M 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 10 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rogers Ten-75 Ch= 33B [60 cycle] - Rogers-Majestic, Standard

• Notes
• This model has a built-in timer clock to automatically turn the set on and off. The Rogers Ten-76 and Majestic Marquette are electronically identical to this set.

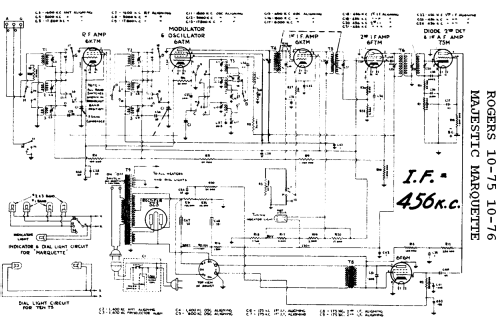

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Rogers-Majestic section page 16, 11, 12 & Cross-Reference

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
