3 Watt, 5" Loud Speaker 5F

3 Watt, 5' Loud Speaker 5F; Rola Company AUS Pty (ID = 2397296) Speaker-P 3 Watt, 5' Loud Speaker 5F; Rola Company AUS Pty (ID = 2397295) Speaker-P

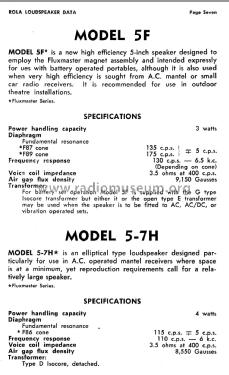

3 Watt, 5' Loud Speaker 5F; Rola Company AUS Pty (ID = 2397297) Speaker-P
Use red slider bar for more.
3 Watt, 5' Loud Speaker 5F; Rola Company AUS Pty (ID = 2397296) Speaker-P
Rola Company AUS Pty: 3 Watt, 5" Loud Speaker 5F [Speaker-P] ID = 2397296 777x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3 Watt, 5" Loud Speaker 5F, Rola Company (AUS) Pty. Ltd.; Melbourne:
Rola 5F Back

Country:  Australia
Manufacturer / Brand:  Rola Company (AUS) Pty. Ltd.; Melbourne
Year: 1960 ?? Category: Loudspeaker, headphone or earphone
Main principle Audio-Amplification
Details
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 3 Watt, 5" Loud Speaker 5F - Rola Company AUS Pty. Ltd.;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 5 x 5 x 2.5 inch / 127 x 127 x 64 mm
Notes

5", 3 Watt, Permanent Magnet Loud Speaker with a Voice Coil impedance of 3.5Ω at 400Hz.

Model page created by Joshua Boxer. See "Data change" for further contributors.
