7 Watt, 9 by 6" Elliptical Speaker C9-6L

7 Watt, 9 by 6' Elliptical Speaker C9-6L; Rola Company AUS Pty (ID = 2401196) Speaker-P 7 Watt, 9 by 6' Elliptical Speaker C9-6L; Rola Company AUS Pty (ID = 2401197) Speaker-P
7 Watt, 9 by 6' Elliptical Speaker C9-6L; Rola Company AUS Pty (ID = 2401198) Speaker-P 7 Watt, 9 by 6' Elliptical Speaker C9-6L; Rola Company AUS Pty (ID = 2410578) Speaker-P
Use red slider bar for more.
7 Watt, 9 by 6' Elliptical Speaker C9-6L; Rola Company AUS Pty (ID = 2401196) Speaker-P

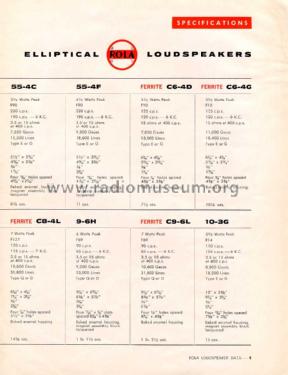

Rola Company AUS Pty: 7 Watt, 9 by 6" Elliptical Speaker C9-6L [Speaker-P] ID = 2401196 1308x912
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7 Watt, 9 by 6" Elliptical Speaker C9-6L, Rola Company (AUS) Pty. Ltd.; Melbourne:
Rola C96L00 Front

Country:  Australia
Manufacturer / Brand:  Rola Company (AUS) Pty. Ltd.; Melbourne
Year: 1965 ?? Category: Loudspeaker, headphone or earphone
Main principle Audio-Amplification
Details
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 inch = 22.9 cm
Power out
from Radiomuseum.org Model: 7 Watt, 9 by 6" Elliptical Speaker C9-6L - Rola Company AUS Pty. Ltd.;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 235 x 162 x 75 mm / 9.3 x 6.4 x 3 inch
Notes

C9-6L Has a Frequency Response of 85 - 6,000Hz

The C at the start denotes Ferrite Magnet

Net weight (2.2 lb = 1 kg) 0.535 kg / 1 lb 2.9 oz (1.178 lb)

Model page created by Joshua Boxer. See "Data change" for further contributors.



All listed radios etc. from Rola Company (AUS) Pty. Ltd.; Melbourne
Here you find 117 models, 41 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
