• Country
• United States of America (USA)

• Manufacturer / Brand
• Rola Company, The; Oakland, CA

• Year
• 1929/1930

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 165710

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rola model 30-J - Rola Company, The; Oakland, CA

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 15.25 x 13 x 8.5 inch / 387 x 330 x 216 mm

• Notes
• The Rola Electro-dynamic Cabinet Speaker operates with a light socket for power by using the model J loudspeaker with a Westinghouse Rectox Rectifier. It has a 20:1 input transformer (Lafayette models J-110, C-110-AC and J-90).

• Price in first year of sale
• 50.00 $

• Literature/Schematics (1)

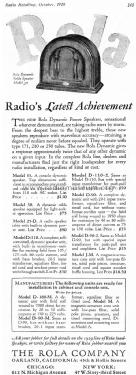

• Lafayette Radio Catalog (Lafayette Catalog 1930 for season 1929/30, page 36-38.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 12 models, 11 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
