- Country
- United States of America (USA)
- Manufacturer / Brand
- Roland Radio Corporation; Mount Vernon (NY)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 140045
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5T16 - Roland Radio Corporation;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes

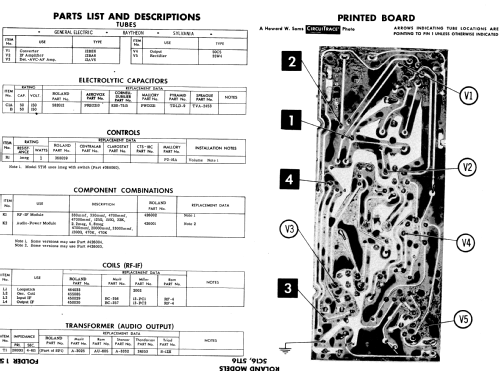

- Sams photofact set 501 folder 15 date 10-60 features the Roland models 5C16 and 5T16 as the same schematic. 5T16 is without clock.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 501 folder 15 date 10-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
