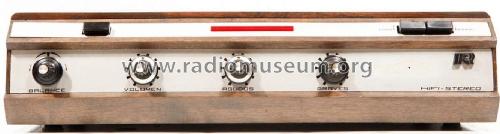

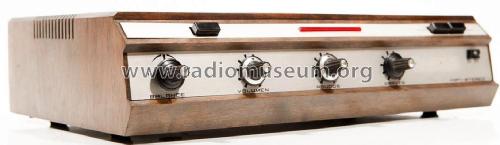

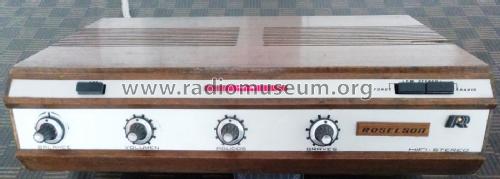

AM 6+6W

AM 6+6W; Roselson, acustica (ID = 2226430) Ampl/Mixer AM 6+6W; Roselson, acustica (ID = 2226431) Ampl/Mixer
AM 6+6W; Roselson, acustica (ID = 2226433) Ampl/Mixer AM 6+6W; Roselson, acustica (ID = 2239030) Ampl/Mixer
AM 6+6W; Roselson, acustica (ID = 2239031) Ampl/Mixer AM 6+6W; Roselson, acustica (ID = 2461307) Ampl/Mixer
AM 6+6W; Roselson, acustica (ID = 2461308) Ampl/Mixer AM 6+6W; Roselson, acustica (ID = 2461309) Ampl/Mixer
AM 6+6W; Roselson, acustica (ID = 2461310) Ampl/Mixer AM 6+6W; Roselson, acustica (ID = 2461311) Ampl/Mixer
Use red slider bar for more.
AM 6+6W; Roselson, acustica (ID = 2226430) Ampl/Mixer
Roselson, acustica: AM 6+6W [Ampl/Mixer] ID = 2226430 1260x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM 6+6W, Roselson, acustica electronica S.L.; Barcelona:
Todocoleccion 44736088 hifiattack

Country:  Spain
Manufacturer / Brand:  Roselson, acustica electronica S.L.; Barcelona
Year: 1970 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 17:
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AM 6+6W - Roselson, acustica electronica
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 364 x 90 x 258 mm / 14.3 x 3.5 x 10.2 inch
Net weight (2.2 lb = 1 kg) 4.850 kg / 10 lb 10.9 oz (10.683 lb)
Source of data -- Original prospect or advert

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Roselson, acustica electronica S.L.; Barcelona
Here you find 25 models, 20 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
