• Country
• Germany

• Manufacturer / Brand
• Rosita, Theo Schmitz GmbH (Audion); Paderborn

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273799

• Number of Transistors
• 21

• Semiconductors
• BF222 or. BF200 BF185 or. BF255 BF255 BF254 BF238 or. BF240 BC238 BC239 D37 AD157 AD156 1N60 AA116 AA118 B40C1500

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

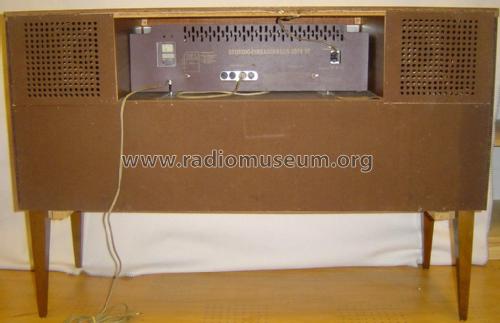

• Model: Diadem 73 Ch= Grundig 8074 ST & Philips GC047 - Rosita, Theo Schmitz GmbH

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Gelistete Transistoren können mehrfach vorhanden sein.

• Author
• Model page created by Otto Tuil. See "Data change" for further contributors.
