Micro Ten Transistor RE-210

Ross Electronics Corp.; Chicago (IL)

  • Year
  • 1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 120102

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Micro Ten Transistor RE-210 - Ross Electronics Corp.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 2.63 x 2.25 x 1 inch / 67 x 57 x 25 mm
  • Notes

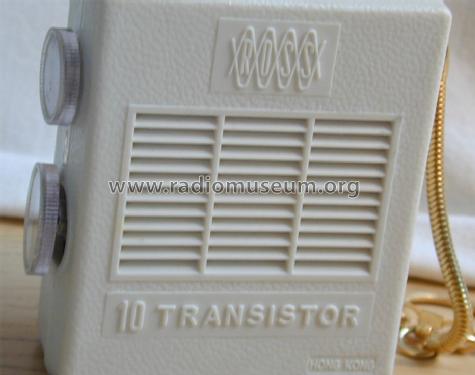

  • Ivory colored cabinet with golden colored letters and logo. Various cabinet colours known.

    Made in Hong Kong

  • Net weight (2.2 lb = 1 kg)
  • 0.180 kg / 0 lb 6.3 oz (0.396 lb)
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
