FM/AM/SW Twin Speaker RE-1915-N Solid State

FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 976051) Radio FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 976052) Radio

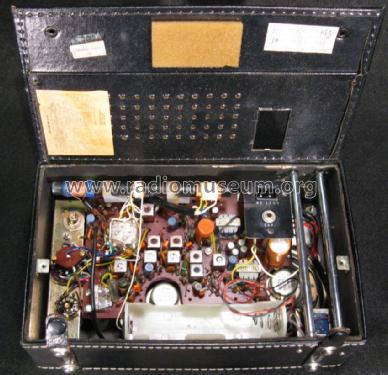

FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 976053) Radio FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 976054) Radio
FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 976055) Radio FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 1052919) Radio
FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 1052920) Radio FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 1052921) Radio
FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 1052922) Radio FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 1052923) Radio
Use red slider bar for more.
FM/AM/SW Twin Speaker RE-1915-N; Ross Electronics (ID = 976051) Radio
Ross Electronics: FM/AM/SW Twin Speaker RE-1915-N [Radio] ID = 976051 933x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM/SW Twin Speaker RE-1915-N Solid State, Ross Electronics Corp.; Chicago (IL):

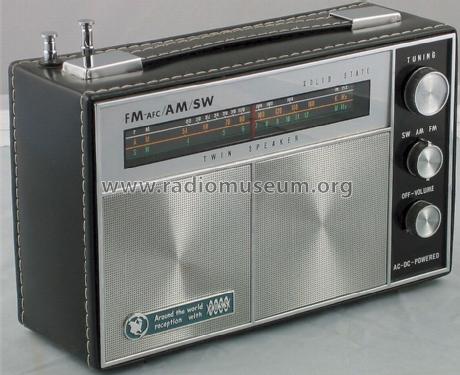

Ross RE-1915-N Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Ross Electronics Corp.; Chicago (IL)
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 13:
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / AC 115 / 4 x 1.5 Volt
Loudspeaker 2 Loudspeakers / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: FM/AM/SW Twin Speaker RE-1915-N [Solid State] - Ross Electronics Corp.;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9.5 x 6 x 3 inch / 241 x 152 x 76 mm

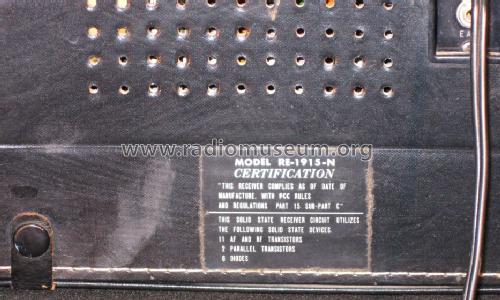

Notes 8 Diodes. Made in Japan.

Model page created by John Kusching. See "Data change" for further contributors.
