Solid State Wake-O-Matic AM/FM Lamp Radio 5500
Ross Electronics Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Ross Electronics Corp.; Chicago (IL)
- Year
- 1970 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 291758
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Radio with other functions
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Material
- Various materials
- from Radiomuseum.org
- Model: Solid State Wake-O-Matic AM/FM Lamp Radio 5500 - Ross Electronics Corp.;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 215 x 165 x 215 mm / 8.5 x 6.5 x 8.5 inch
- Notes
-

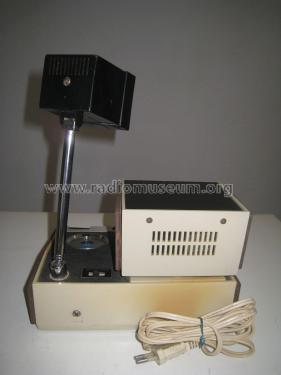

ROSS Solid State Wake-O-Matic AM/FM Lamp Radio model 5500

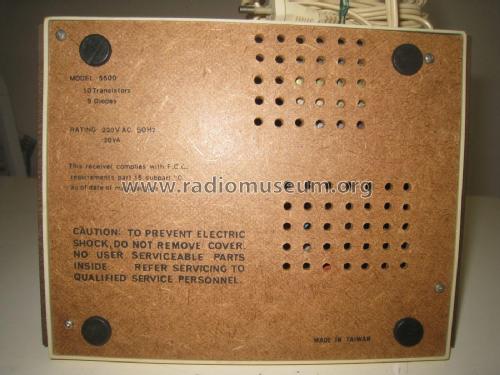

Volume control. External telescopic antenna with 12 V bulb. AM/FM selector. Auto/off /on selector. Headphone output. 20 VA power consumption. Lamp on/off button.
Made in Taiwan
- Net weight (2.2 lb = 1 kg)
- 1.1 kg / 2 lb 6.8 oz (2.423 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
- Other Models
-
Here you find 162 models, 152 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Ross Electronics Corp.; Chicago (IL)
Collections
The model Solid State Wake-O-Matic AM/FM Lamp Radio is part of the collections of the following members.
