4GW/250

4GW/250; Rostocker Gerätebau; (ID = 1945222) Radio 4GW/250; Rostocker Gerätebau; (ID = 1945223) Radio
4GW/250; Rostocker Gerätebau; (ID = 1945226) Radio 4GW/250; Rostocker Gerätebau; (ID = 1945229) Radio
Use red slider bar for more.
4GW/250; Rostocker Gerätebau; (ID = 1945222) Radio
Rostocker Gerätebau;: 4GW/250 [Radio] ID = 1945222 1390x940
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4GW/250, Rostocker Gerätebau; Rostock (Ostd.):

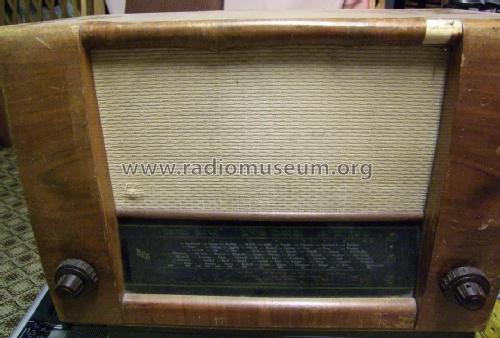

Foto des Gerätes aus eigener Sammlung

Country:  Germany
Manufacturer / Brand:  Rostocker Gerätebau; Rostock (Ostd.)
alternative name

VEB(K) REG Rostocker Elektro-Gerätebau
Year: 1952 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH11 UBF11 UCL11
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 4GW/250 - Rostocker Gerätebau; Rostock
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 535 x 365 x 270 mm / 21.1 x 14.4 x 10.6 inch
Notes Lt. Rückwand im "VEB REG (K) Rostocker Elektro-Gerätebau" mit der
Bezeichnung "6 Kreis Allstromsuper 4GW/250" hergestellt.

Model page created by Jens Dehne. See "Data change" for further contributors.



All listed radios etc. from Rostocker Gerätebau; Rostock (Ostd.)
Here you find 5 models, 5 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
