FAX-800

FAX-800; Rotel, The, Co., Ltd (ID = 253093) Radio FAX-800; Rotel, The, Co., Ltd (ID = 253094) Radio
Use red slider bar for more.

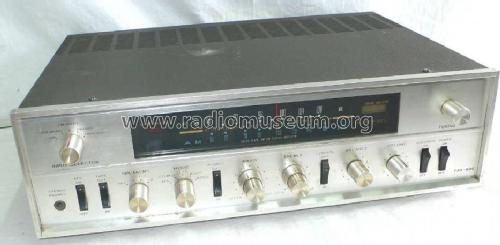

FAX-800; Rotel, The, Co., Ltd (ID = 253093) Radio
Rotel, The, Co., Ltd: FAX-800 [Radio] ID = 253093 933x458
Select picture or schematic to display from thumbnails on the right and click for download.
For model FAX-800, Rotel, The, Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Rotel, The, Co., Ltd.; Tokyo
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: FAX-800 - Rotel, The, Co., Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 425 x 135 x 330 mm / 16.7 x 5.3 x 13 inch
Notes Stereo-Receiver, 4 LS-Ausgänge, Phono- und 2× Tape-Eingang.
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Source of data - - Data from my own collection

Model page created by Peter Böhm. See "Data change" for further contributors.
