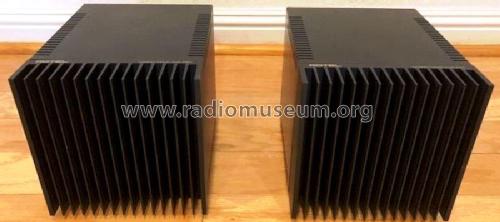

Mosfet Mono Amplifier RMB-100

Rotel, The, Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1995
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 308554

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120 or 220 or 230 or 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 125 W (200 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Mosfet Mono Amplifier RMB-100 - Rotel, The, Co., Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 170 x 165 x 200 mm / 6.7 x 6.5 x 7.9 inch
  • Notes

  • A 125 watt Mosfet Mono Power Amplifier. Unbalanced RCA input for connection to most amplifiers or preamplifiers, and an XLR connector for connection to a preamplifier with balanced output. Certified for use as a THX amplifier when the preamplifier is connected via the RCA unbalanced input. Two pairs of connectors for connection to a bi-wire loudspeaker. Power switch on the back, On, Off and Auto for Auto Power On when an incoming signal from the preamplifier is sensed and Auto Standby when idle.

    Continuous Power Output :
    125 watts min. RMS driven into 8Ω or
    200 watts min. RMS driven into 4Ω
    from 20Hz to 20kHz with 0.03% Total Harmonic Distortion
    Total Harmonic Distortion ......:   0.03%
    Intermodulation Distortion..... :   0.03%
    Damping Factor ................... :  > 500
    Input Impedance ...................:  24kΩ
    Frequency Response ...........:  10Hz - 20kHz, +0dB, -0.4dB
    Signal to Noise Ratio ............:  100dB (A weighted)
    Loudspeaker Impedance .....:  4 - 16Ω
    Power Consumption .............:  1.2VA Auto-standby, 40VA Idling, 500VA full power, 4Ω load

    Versions/Power Requirements
    120 V AC 60Hz
    220/230/240 V AC 50Hz

  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Price in first year of sale
  • 500.00 USD
  • Mentioned in
  • - - Manufacturers Literature (Rotel Home Theater Components brochure)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Owner's Manual for RMB-100 Mosfet Mono Power Amplifier)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Technical Manual for RMB-100 Mono Power Amplifier)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
