• Country
• Japan

• Manufacturer / Brand
• Rotel, The, Co., Ltd.; Tokyo

• Year
• 1980

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 177263

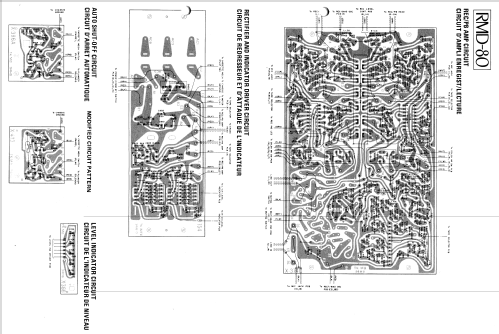

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

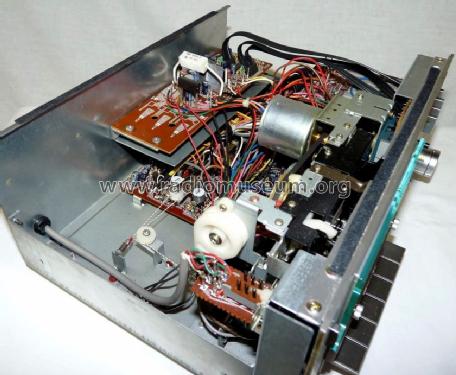

• Model: Stereo Cassette Tape Deck RMD-80 - Rotel, The, Co., Ltd.; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 280 x 118 x 230 mm / 11 x 4.6 x 9.1 inch

• Notes
• Stereo-Cassette Tape Deck. Glasferritköpfe. Dolby-System (NR).
  Betriebsarten: Metal, CrO2, FeCr, Normal. Getrennte Mikrofoneingänge und Aufnahmeregler. 3 stelliges Zählwerk. LED-Aussteuerungsanzeige (-10 / +6 dB). Spannungsversorgung über Verstärker RMA-80 (AC 14V / DC 33V).

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
