• Country
• Japan

• Manufacturer / Brand
• Rotel, The, Co., Ltd.; Tokyo

• Year
• 1973

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 162880

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: RS-883 - Rotel, The, Co., Ltd.; Tokyo

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 330 x 560 x 200 mm / 13 x 22 x 7.9 inch

• Notes

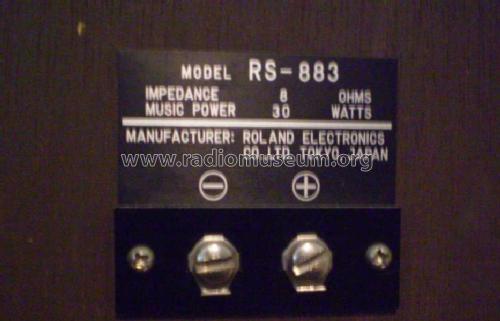

• 2 Weg Standbox, 30 Watt Musik, 8 Ohm, 50 - 20.000Hz, 92 dB/W/m.
  Trennfrequenz 5.000Hz, 6dB/Okt.
  2 x 200mm TT, 90mm HT.

• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
