Stereo Control Amplifier RC-980BX

Roland Electronics Co. Ltd., Rotel; Tokyo

Dati
Forum
Immagini
Collezioni

  • Anno
  • 1992
  • Categoria
  • Amplificatore audio o mixer audio
  • Radiomuseum.org ID
  • 308031

 Specifiche tecniche

  • Numero di transistor
  • A semiconduttori.
  • Semiconduttori
  • Principio generale
  • Amplificatore audio
  • Gamme d'onda
  • - senza
  • Particolarità
  • Hi-Fi equipment
  • Tensioni di funzionamento
  • Alimentazione a corrente alternata (CA) / 100 or 120 or 220 or 240 Volt
  • Altoparlante
  • - Per cuffie o amplificatori esterni
  • Materiali
  • Mobile di metallo
  • Radiomuseum.org
  • Modello: Stereo Control Amplifier RC-980BX - Roland Electronics Co. Ltd.,
  • Forma
  • Apparecchio per ripiani a scaffale (come i componibili HiFi).
  • Dimensioni (LxAxP)
  • 440 x 70 x 325 mm / 17.3 x 2.8 x 12.8 inch
  • Annotazioni

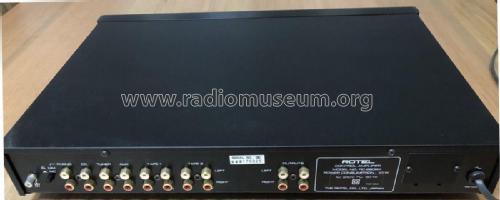

  • A Stereo pre-amplifier, partner to the RB-980BX Stereo Power Amplifier. Push button for Power. Rotary control for Volume/Balance. Rotary switches for Recording (Phono, Tuner, Off, CD, Aux, Tape 1), and Listening  (Phono, Tuner, CD, Aux, Tape 1, Tape 2). Power on Indicator. Jack for Headphones. MM/MC switch on the back.

    Total Harmonic Distortion Line ........:  No more than 0.004% (20Hz-20kHz at rated output)
    Intermodulation Distortion Line ...... :  No more than 0.004% (60Hz:7 kHz at rated output)
    Headphones load impedance .........:  8 - 2000Ω
    Input Sensitivity/Impedance :
                                    Phono MM ...:  2.5mV/47kΩ
                                    Phono MC ...:  250µV/100Ω
                                    Line ........... :  150mV/34kΩ
    Output Sensitivity/Impedance ........:  1.0V/100Ω
    Frequency Response Phono .........:  20Hz - 20kHz,  ± 0.2dB (RIAA Standard)
                                    Line ............:  4Hz - 100kHz, +0.5dB, -3dB
    Signal to Noise Ratio Phono MM ...:  75dB
                                    Phono MC ...:  70dB
                                    Line ............:  100dB

    Versions/Power Requirements
    100 V AC 50-60Hz
    120 V AC 60Hz
    220 V AC 50Hz
    240 V AC 50Hz


  • Peso netto
  • 4.1 kg / 9 lb 0.5 oz (9.031 lb)
  • Bibliografia
  • Selected for the CES Design and Engineering Award 1992
  • Letteratura / Schemi (1)
  • - - Manufacturers Literature (Owner's Manual for the RC-980BX)
  • Letteratura / Schemi (2)
  • - - Manufacturers Literature (Technical Manual for the RC-980BX)
  • Autore
  • Modello inviato da Howard Craven. Utilizzare "Proponi modifica" per inviare ulteriori dati.
