PolleRoyal 3-Dial UV sockets

Royal - see also in text

  • Year
  • 1925 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 200885

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: PolleRoyal 3-Dial [UV sockets] - Royal - see also in text
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 21 x 10 x 9 inch / 533 x 254 x 229 mm
  • Notes

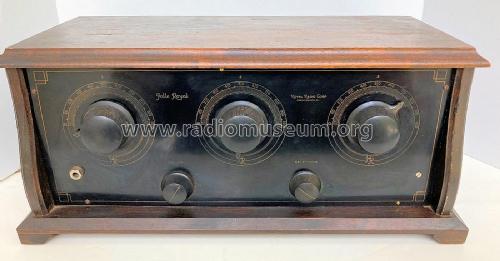

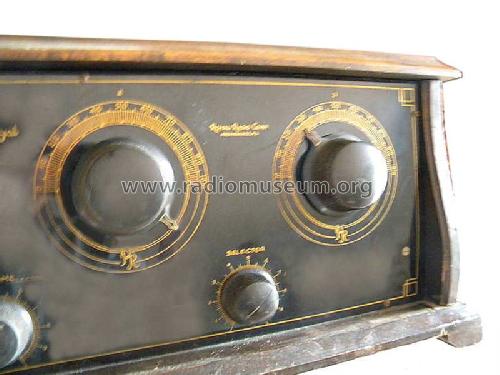

  • Royal Radio Corporation PolleRoyal "Gem of the Air" TRF receiver. This set used UV201A tubes and had UV based tube sockets.
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
