• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 238866

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 152 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Super-Écran 456 [AC] - RR Radio R.R. Radio; Bruxelles
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Dimensions (WHD)
  • 405 x 450 x 265 mm / 15.9 x 17.7 x 10.4 inch
  • Notes

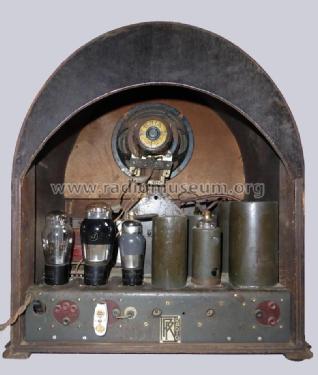

  • In dark brown stained wooden case with solid brass knobs, illuminated scale, with a numerical layout (0..10) and station names. The knobs from left to right: wave length switch, tuning, on/off/volume. Receives on medium wave (192-570 meters) and long wave (770-1920 meters). At the rear are two antenna connections, a ground, a tone switch, a connection for an additional loudspeaker and a pick-up connection. The mains voltage can be set by means of a porcelain plug with a built-in fuse.

  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Mentioned in
  • Radio Home, Nr. 202, August-September 1933
  • Author
  • Model page created by Gidi Verheijen. See "Data change" for further contributors.
