230WL-P Pressstoffgehäuse

230WL-P; SABA; Villingen (ID = 5466) Radio

230WL-P; SABA; Villingen (ID = 12935) Radio

230WL-P; SABA; Villingen (ID = 12936) Radio

230WL-P; SABA; Villingen (ID = 12937) Radio

230WL-P; SABA; Villingen (ID = 12938) Radio

230WL-P; SABA; Villingen (ID = 2528163) Radio
230WL-P; SABA; Villingen (ID = 154830) Radio 230WL-P; SABA; Villingen (ID = 154831) Radio
230WL-P; SABA; Villingen (ID = 154832) Radio 230WL-P; SABA; Villingen (ID = 705) Radio
230WL-P; SABA; Villingen (ID = 29381) Radio 230WL-P; SABA; Villingen (ID = 91977) Radio
230WL-P; SABA; Villingen (ID = 154833) Radio 230WL-P; SABA; Villingen (ID = 493537) Radio
230WL-P; SABA; Villingen (ID = 1580665) Radio 230WL-P; SABA; Villingen (ID = 1716708) Radio
Use red slider bar for more.
230WL-P; SABA; Villingen (ID = 154830) Radio

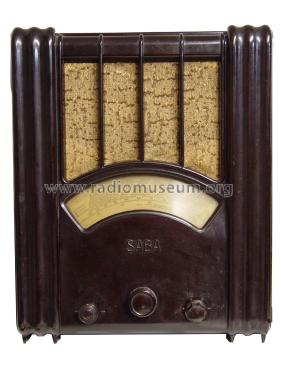

SABA; Villingen: 230WL-P [Radio] ID = 154830 590x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 230WL-P Pressstoffgehäuse, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1284 AB1 RES964 RGN1064
Main principle TRF with diode detector; 1 Special; 1 AF stage(s); Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 230WL-P [Pressstoffgehäuse] - SABA; Villingen
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 340 x 420 x 220 mm / 13.4 x 16.5 x 8.7 inch
Notes Reflex!
Price in first year of sale 198.00 RM
Source of data Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Radio-Katalog, Mix & Genest Hansawerke, 1935
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from SABA; Villingen
