317 Automatic
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1979
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 130411
-
- Brand: Schwer & Söhne, GmbH

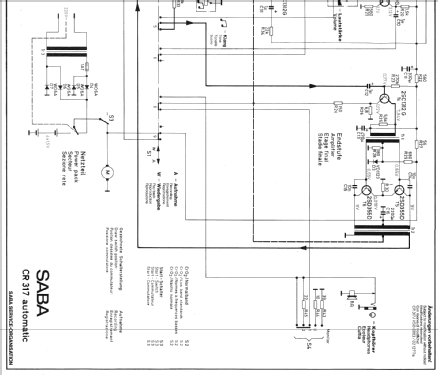

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220/4x1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

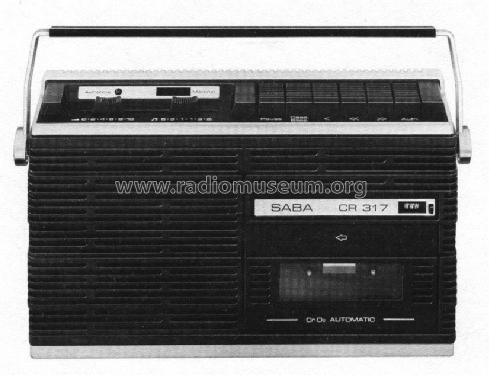

- Model: 317 Automatic - SABA; Villingen
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 290 x 180 x 85 mm / 11.4 x 7.1 x 3.3 inch
- Notes
- Mono-Cassetten-Recorder mit automatischer Band-Endabschaltung, ALC, eingebautes Mikrofon, Ohrhöreranschluss.
Ausführung in Mattschwarz.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)

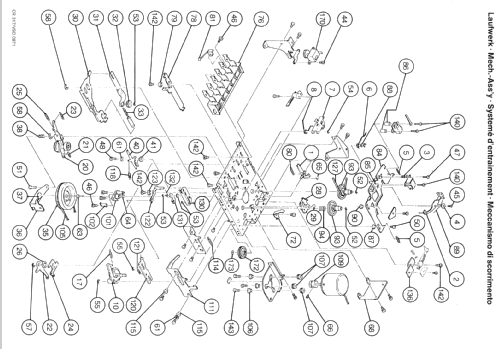

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
