420GL

420GL; SABA; Villingen (ID = 5519) Radio

420GL; SABA; Villingen (ID = 11093) Radio

420GL; SABA; Villingen (ID = 11094) Radio

420GL; SABA; Villingen (ID = 11095) Radio

420GL; SABA; Villingen (ID = 11096) Radio

420GL; SABA; Villingen (ID = 2416311) Radio
420GL; SABA; Villingen (ID = 2162497) Radio 420GL; SABA; Villingen (ID = 2162498) Radio
420GL; SABA; Villingen (ID = 708407) Radio 420GL; SABA; Villingen (ID = 19900) Radio
420GL; SABA; Villingen (ID = 19902) Radio
Use red slider bar for more.
420GL; SABA; Villingen (ID = 2162497) Radio
SABA; Villingen: 420GL [Radio] ID = 2162497 1400x1988
Select picture or schematic to display from thumbnails on the right and click for download.
For model 420GL, SABA; Villingen:
Gerät steht im Schwarzwald Museum in der Saba-Ausstellung.

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1820 RENS1820 REN1821 RENS1823d
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 420GL - SABA; Villingen
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 340 x 430 x 200 mm / 13.4 x 16.9 x 7.9 inch
Price in first year of sale 168.00 RM +
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb

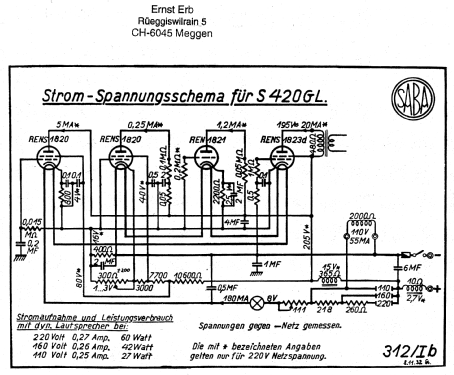

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from SABA; Villingen
Here you find 1554 models, 1415 with images and 1041 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
SABA; Villingen: 420GL
Threads: 1 | Posts: 1
Hits: 1347     Replies: 0
saba: Techn. Unterlagen
Ernst Erb
01.Feb.03
  1 Ersatzteillisten (5) siehe bei 310W und allg. Texte über die 1932er Familie bei 520W bzw. 520GL für Gleichstrommodelle.
