AM / FM Stereo Cassette Receiver Journey

AM / FM Stereo Cassette Receiver Journey; SABA; Villingen (ID = 2039198) Radio

AM / FM Stereo Cassette Receiver Journey; SABA; Villingen (ID = 2039199) Radio

AM / FM Stereo Cassette Receiver Journey; SABA; Villingen (ID = 2039200) Radio

AM / FM Stereo Cassette Receiver Journey; SABA; Villingen (ID = 2039201) Radio

AM / FM Stereo Cassette Receiver Journey; SABA; Villingen (ID = 2039202) Radio

AM / FM Stereo Cassette Receiver Journey; SABA; Villingen (ID = 2039203) Radio
AM / FM Stereo Cassette Receiver Journey; SABA; Villingen (ID = 2039204) Radio
Use red slider bar for more.
AM / FM Stereo Cassette Receiver Journey; SABA; Villingen (ID = 2039204) Radio
SABA; Villingen: AM / FM Stereo Cassette Receiver Journey [Radio] ID = 2039204 400x355
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM / FM Stereo Cassette Receiver Journey, SABA; Villingen:
Saba Prospekt 1981/82

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1981/1982 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SA1048 2SC2785 TA7640 TA7343 TBA820 TBA820
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Batteries / addl. power jack / 4 x 1,5 / 6 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM / FM Stereo Cassette Receiver Journey - SABA; Villingen
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 95 x 155 x 35 mm / 3.7 x 6.1 x 1.4 inch
Mentioned in -- Original prospect or advert

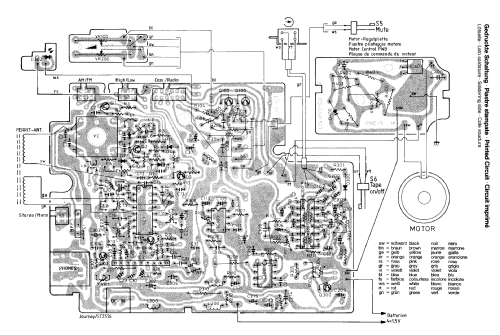

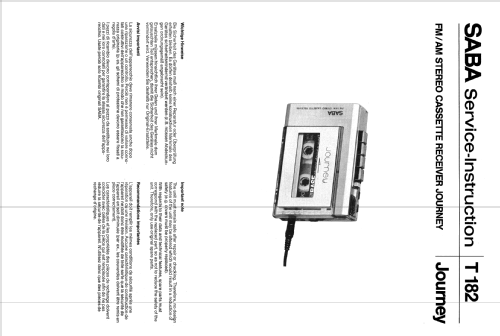

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Richard Winter. See "Data change" for further contributors.
