• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1970/1971

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28155

• • Brand: Schwer & Söhne, GmbH

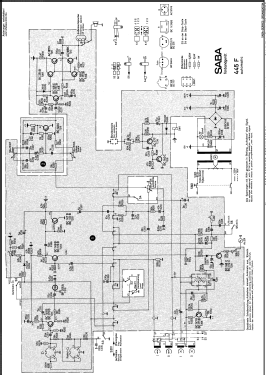

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• BC149 BF246 BC149 BC147 BC147 BC148C BC140 BC177 BC148C BC148C BC251 AC187 BC148C AC188 1N4148 1N4148 ZE1,5 B30C450

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tonbandgerät TG446 F automatic - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 175 x 330 mm / 19.3 x 6.9 x 13 inch

• Notes
• Vierspur-Mono; Bandgeschwindigkeiten: 4,75/9,5 cm/s; Spulen-Ø: 18 cm; Übertragungsbereich bei 9,5 cm/s: 40-15000 Hz.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 398.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971

• Mentioned in

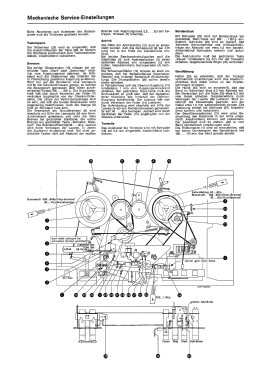

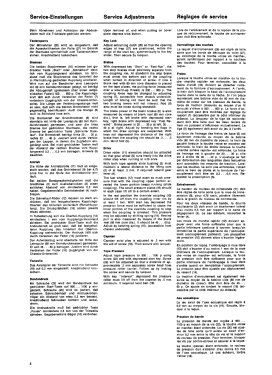

• -- Original-techn. papers. (Original Saba Schaltplan für Tonbandgeräte 445F und 446F automatic)
