Bodensee 18 Automatic Stereo

Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 145458) TV Radio

Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 145459) TV Radio

Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1911717) TV Radio

Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1911718) TV Radio

Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1911834) TV Radio

Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1911835) TV Radio

Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1911836) TV Radio
Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 145455) TV Radio Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 696013) TV Radio
Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1857858) TV Radio Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1857859) TV Radio
Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1857860) TV Radio Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1857861) TV Radio
Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1857862) TV Radio Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1857863) TV Radio
Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1857864) TV Radio Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 1857865) TV Radio
Use red slider bar for more.
Bodensee 18 Automatic Stereo; SABA; Villingen (ID = 145455) TV Radio
SABA; Villingen: Bodensee 18 Automatic Stereo [TV Radio] ID = 145455 769x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bodensee 18 Automatic Stereo, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1967 ? Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Semiconductors (the count is only for transistors) 33:
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 8 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 115; 127; 220; 240 Volt
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: Bodensee 18 Automatic Stereo - SABA; Villingen
Material Wooden case

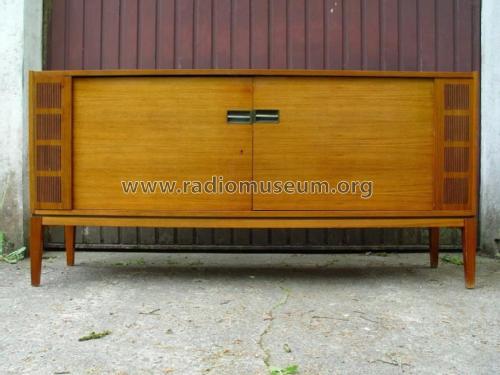

Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 1705 x 845 x 465 mm / 67.1 x 33.3 x 18.3 inch
Notes Fernsehteil wie T188.
Rundfunkteil entspricht Hifi-Studio II A Stereo.
Plattenspieler: DUAL 1009 (TA-System: SP1).
Net weight (2.2 lb = 1 kg) 103 kg / 226 lb 14 oz (226.872 lb)
Source of data -- Original-techn. papers.

Model page created by a member from D. See "Data change" for further contributors.
