bonny H; SABA; Villingen (ID = 50393) Radio

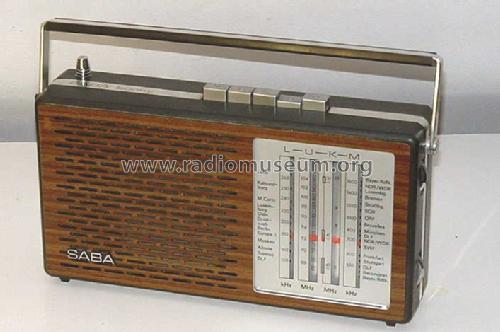

SABA; Villingen: bonny H [Radio] ID = 50393 707x470
Select picture or schematic to display from thumbnails on the right and click for download.
For model bonny H, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1972–1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF314 BF273 BF241 BF240 BF240 BC239 BC253 AC192 AC187 AC188 AC153 BAY93 BB103 AA119 AA119 AA119 BZ102 1N4001
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.4 W (unknown quality)
from Radiomuseum.org Model: bonny H - SABA; Villingen
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 140 x 65 mm / 10.6 x 5.5 x 2.6 inch
Notes Saba Kofferradio Bonny H.
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Price in first year of sale 158.00 DM
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1972/1973
Mentioned in Handbuch VDRG 1973/1974 (und 1974 bis 1975/76)
