CD Combination CDC 695

CD Combination CDC 695; SABA; Villingen (ID = 2111465) Radio

CD Combination CDC 695; SABA; Villingen (ID = 2111466) Radio

CD Combination CDC 695; SABA; Villingen (ID = 2111467) Radio

CD Combination CDC 695; SABA; Villingen (ID = 2111468) Radio

CD Combination CDC 695; SABA; Villingen (ID = 2111469) Radio

CD Combination CDC 695; SABA; Villingen (ID = 2111470) Radio

CD Combination CDC 695; SABA; Villingen (ID = 2111471) Radio

CD Combination CDC 695; SABA; Villingen (ID = 2111473) Radio

CD Combination CDC 695; SABA; Villingen (ID = 2111474) Radio

CD Combination CDC 695; SABA; Villingen (ID = 2111475) Radio
CD Combination CDC 695; SABA; Villingen (ID = 2107616) Radio
Use red slider bar for more.
CD Combination CDC 695; SABA; Villingen (ID = 2107616) Radio
SABA; Villingen: CD Combination CDC 695 [Radio] ID = 2107616 1400x553
Select picture or schematic to display from thumbnails on the right and click for download.
For model CD Combination CDC 695, SABA; Villingen:

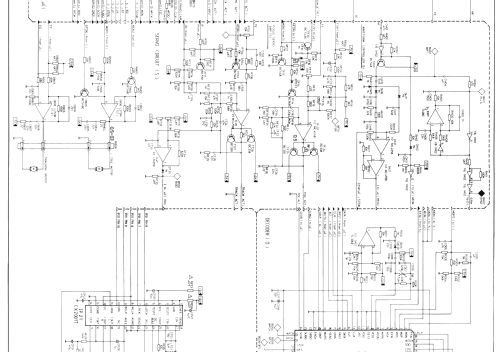

Abbildung aus der Saba Service-Instruction.

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1986–1988 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 69:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Other Combination - see Notes
Power type and voltage Line / Batteries (any type) / AC: 220 / R20: 12 x 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out 25 W (50 W max.)
from Radiomuseum.org Model: CD Combination CDC 695 - SABA; Villingen
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 745 x 195 x 175 mm / 29.3 x 7.7 x 6.9 inch
Notes

Rundfunkteil mit UKW Stereo, MW, LW und KW.
CD-Player mit 16-bit Quantisierung und 3-Beam-Laser.
Doppel-Kassettendeck mit Dolby B, Synchro- und High-Speed-Dubbing.
Abnehmbare 2-Wege-Bassreflexboxen.
Anschlüsse für Stereo-Kopfhörer, 2 Mikrofone, Cinch für Aux / Plattenspieler
Eingebauter Entzerrer-Vorverstärker für Phono.

69 Transistoren, 28 ICs und zwei 7-Segment-LED-Anzeigen. Dimensionen inkl. Boxen.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original prospect or advert

Model page created by Manfred Rauschen. See "Data change" for further contributors.
