• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85774

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

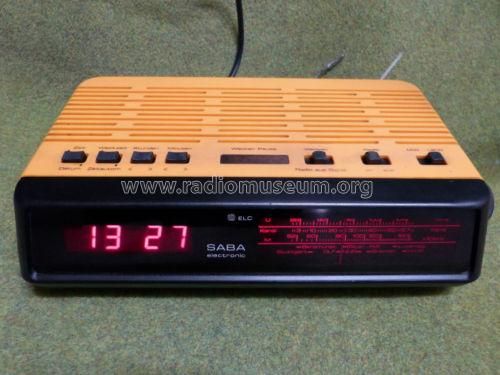

• Model: Computer Clock P - SABA; Villingen

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 270 x 80 x 160 mm / 10.6 x 3.1 x 6.3 inch

• Notes
• ICs: MK50366N, LM386; Dioden: 18.
  Display-Helligkeit mit LDR geregelt.
  Gehäusefarben: mattweiß, mattschwarz, rot oder gelb.

• Source of data
• Handbuch VDRG 1977/1978

• Literature/Schematics (1)
• -- Original-techn. papers. (SABA Ersatzteilliste "R 153")

• Author
• Model page created by a member from D. See "Data change" for further contributors.
