• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1973–1975

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29192

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / AC: 220 / DC: 9 / C: 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

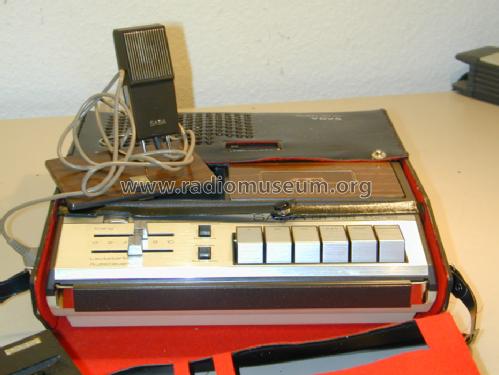

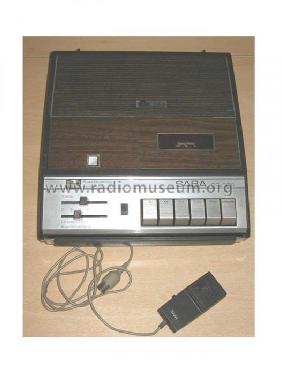

• Model: CR335 Stereo H - SABA; Villingen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 75 x 260 mm / 9.4 x 3 x 10.2 inch

• Notes

• Stereo-Wiedergabe nur in Verbindung mit Rundfunkgerät oder Verstärker. Übertragungsbereich: 60-10000 Hz.

  Betreiben kann man dieses Gerät auch mit einem  9 V - Netzteil.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 298.00 DM

• External source of data
• Erb

• Source of data

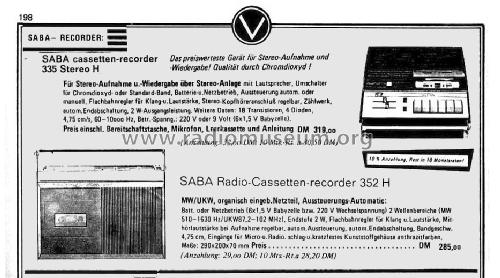

• Katalog RFP 1973

• Literature/Schematics (1)
• -- Original-techn. papers.
