Donau M

Donau M; SABA; Villingen (ID = 2028197) Radio

Donau M; SABA; Villingen (ID = 2028198) Radio

Donau M; SABA; Villingen (ID = 297482) Radio

Donau M; SABA; Villingen (ID = 297483) Radio

Donau M; SABA; Villingen (ID = 297484) Radio

Donau M; SABA; Villingen (ID = 297485) Radio

Donau M; SABA; Villingen (ID = 297488) Radio

Donau M; SABA; Villingen (ID = 297490) Radio

Donau M; SABA; Villingen (ID = 297493) Radio

Donau M; SABA; Villingen (ID = 2030957) Radio
Donau M; SABA; Villingen (ID = 1716104) Radio Donau M; SABA; Villingen (ID = 58402) Radio
Donau M; SABA; Villingen (ID = 1229007) Radio Donau M; SABA; Villingen (ID = 526196) Radio
Donau M; SABA; Villingen (ID = 297495) Radio Donau M; SABA; Villingen (ID = 1229008) Radio
Donau M; SABA; Villingen (ID = 1229009) Radio Donau M; SABA; Villingen (ID = 1709582) Radio
Donau M; SABA; Villingen (ID = 1709583) Radio Donau M; SABA; Villingen (ID = 1709584) Radio
Use red slider bar for more.

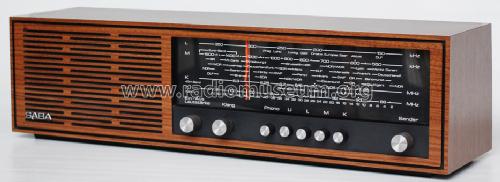

Donau M; SABA; Villingen (ID = 1716104) Radio
SABA; Villingen: Donau M [Radio] ID = 1716104 933x341
Select picture or schematic to display from thumbnails on the right and click for download.
For model Donau M, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1976–1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SC535 2SC381 2SC381 BF441 2SC535 2SC381 2SC381 ED1402 TBA810
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Donau M - SABA; Villingen
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 515 x 140 x 150 mm / 20.3 x 5.5 x 5.9 inch
Notes Gehäusevarianten: Nussbaum hell natur, mattweiss.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Collectors' prices
Source of data Handbuch VDRG 1976/1977

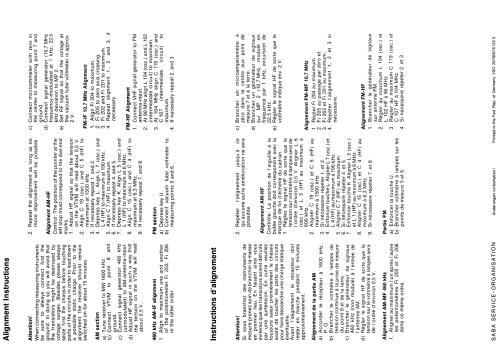

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
