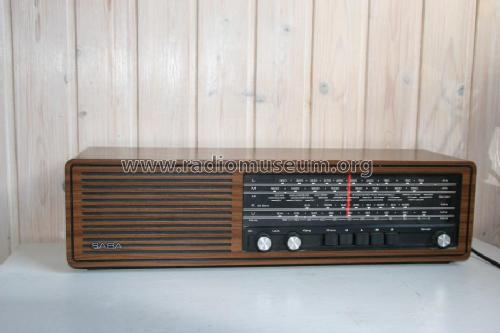

Donau P; SABA; Villingen (ID = 377638) Radio
SABA; Villingen: Donau P [Radio] ID = 377638 550x413
Select picture or schematic to display from thumbnails on the right and click for download.
For model Donau P, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1979–1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SC535 2SC381 2SC381 BF441 2SC535 2SC381 2SC381 ED1402 TBA810
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Donau P - SABA; Villingen
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 515 x 140 x 150 mm / 20.3 x 5.5 x 5.9 inch
Notes Gehäusevarianten: Nussbaum, mattweiss. Ab 1982 nur noch Nussbaum im Katalog angeboten.
Gespreiztes 49-m-Band.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 198.00 DM
Collectors' prices
Source of data Handbuch VDRG 1974/1975

Model page created by Ilja Liebisch. See "Data change" for further contributors.
