Fernsteuerung RS125

SABA; Villingen

  • Year
  • 1960–1965
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 127166
    • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Fernsteuerung RS125 - SABA; Villingen
  • Dimensions (WHD)
  • 60 x 50 x 125 mm / 2.4 x 2 x 4.9 inch
  • Notes

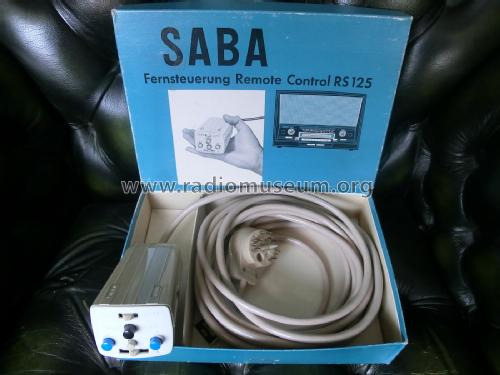

  • Saba Fernsteuerung RS 125

    Kabelfernbedienung für Saba Freiburg Automatic-Radios 125, 11, 12, 14, 15 und 18

    Die jeweiligen Spitzen Radio oder Fernsehtruhen und die Freiburg - Studio - Ausführungen, soweit ausgestattet mit Saba Vollautomatic - Radioteilen konnten ebenfalls mit der RS 125 fernbedient werden.

    Erstmalig mit fernbedienbarer Umschaltung UKW - Mittelwelle

    und folgenden Funktionen .Ein-Aus - zeitweilig Stumm; Stufenlos Leiser - Lauter; Sendersuchen Links-Rechts; forcierter Schnelllauf Links-Rechts; Sprache/Musik umschalten. Mit Kontrolllampen. Kabellänge ca. 7,5 m.

    Remote Control for Freiburg chassis series 125,11,12,14,15 and 18 The functions are on/off, mute key, volume, tone switch, changeover between FM and AM, station tuning and speed motion.



  • Net weight (2.2 lb = 1 kg)
  • 0.6 kg / 1 lb 5.1 oz (1.322 lb)
  • Price in first year of sale
  • 56.00 DM
  • Source of data
  • -- Original-techn. papers.
  • Mentioned in
  • -- Original prospect or advert (Saba Programm 1960 mit Preisangabe, Saba Rundfunkgeräte 1965)
