• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1986 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 300157

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Full Logic Stereo Cassette Deck CD1 - SABA; Villingen

• Shape
• Book-shelf unit.

• Notes

• Frequenzgang: 30 Hz - 18 kHz
  Wow und Flutter: 0,12%

  6,3 mm Klinkenanschlüsse für Kopfhörer und Stereo-Mikrofon.

• Mentioned in

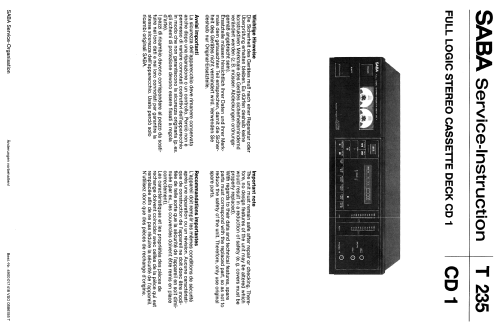

• -- Original-techn. papers.

• Author
• Model page created by Josef Croati † 26.7.22. See "Data change" for further contributors.
