• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1987/1988

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 299567

• • Brand: Schwer & Söhne, GmbH

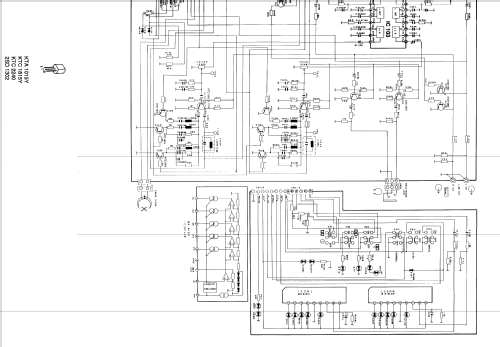

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: HiFi Stereo Single Cassette Deck SC-1010 - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 117 x 245 mm / 17.3 x 4.6 x 9.6 inch

• Notes

• Hifi-Stereo-Cassettendeck mit Sofort-Aufnahme und Timer Stand-By Funktion.

  Manuelle Bandsorteneinstellung
  Automatische Bandende-Abschaltung
  Dolby® B + C Rauschunterdrückung
  Frequenzgang 30 Hz - 16 kHz
  Wow und Flutter 0,10%
  6.3 mm Klinkenanschlüsse für Kopfhörer und 2 x Stereo-Mikrofon

• Net weight (2.2 lb = 1 kg)
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original prospect or advert (Qualitätsprogramm 87/88)

• Author
• Model page created by Josef Croati † 26.7.22. See "Data change" for further contributors.
