HiFi Stereo TG-543F

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1969–1971

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27838

• • Brand: Schwer & Söhne, GmbH

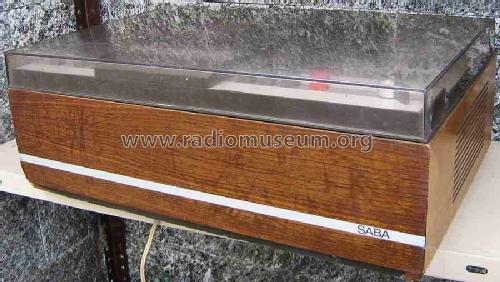

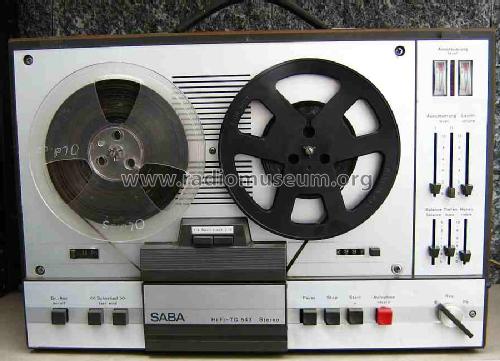

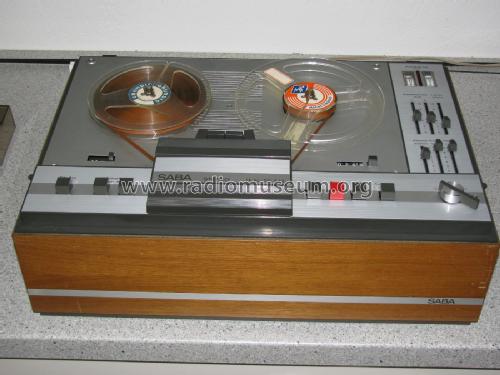

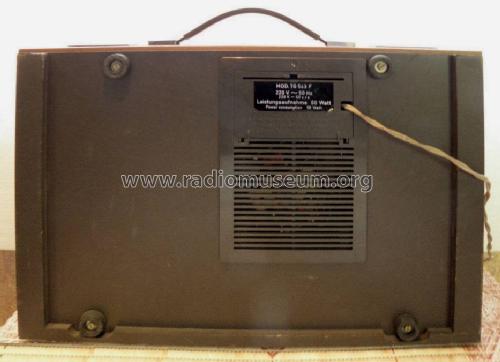

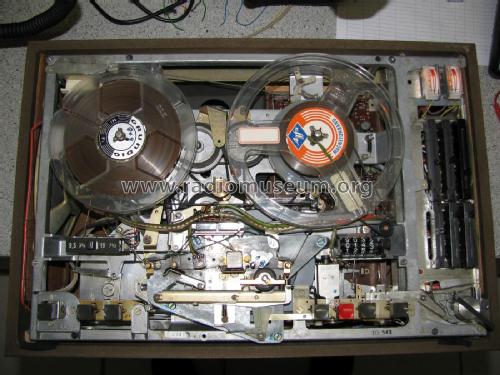

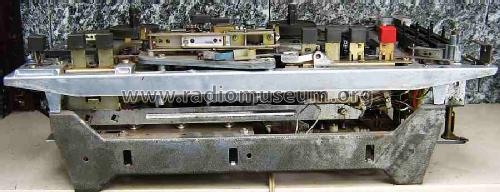

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 10 W (unknown quality)

• from Radiomuseum.org
• Model: HiFi Stereo TG-543F - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 492 x 175 x 328 mm / 19.4 x 6.9 x 12.9 inch

• Notes
• Vierspur-Stereo; Bandgeschwindigkeiten: 9,5/19 cm/s; Spulen-Ø: 18 cm; Übertragungsbereich bei 19 cm/s: 40-18000 Hz. Stereo-NF-Verstärker mit 2 Endstufen je 5 W. Horizontal- und Vertikalbetrieb.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Price in first year of sale
• 598.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970
