HiFi-Studio I Stereo ; SABA; Villingen (ID = 2035266) Radio
SABA; Villingen: HiFi-Studio I Stereo [Radio] ID = 2035266 1398x539

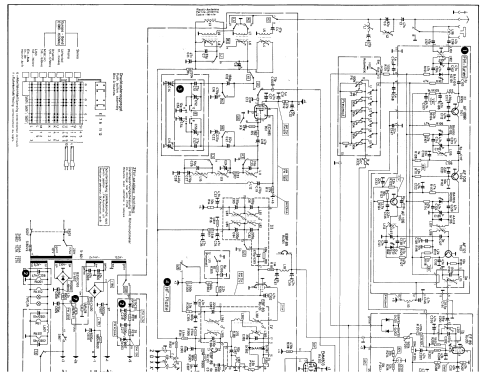

Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi-Studio I Stereo (1 Stereo), SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EF89 EBF89 EMM803
Semiconductors (the count is only for transistors) 27:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 24 W (40 W max.)
from Radiomuseum.org Model: HiFi-Studio I Stereo - SABA; Villingen
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 655 x 220 x 204 mm / 25.8 x 8.7 x 8 inch
Notes

HiFi-Stereo-Steuergerät.

Empfangsteil mit Röhren bestückt, Verstärkerteil mit Transistoren. NF-Verstärker mit 2 Endstufen je 12 W (Sinus) / 20 W (Musik), Klirrfaktor 1% bei Nennleistung, Frequenzgang 30 bis 20.000 Hz ± 1,5 dB, eingebauter Entzerr-Vorverstärker für magnetische Tonabnehmer, Abstimmanzeige und Stereosignal durch Magisches Band, 5 UKW-Stationstasten.

2x Mittelwelle, 520-1600 kHz und Europawelle 1380-1600 kHz, Kurzwelle nur 49-m-Band

Price in first year of sale 748.00 DM
Collectors' prices
External source of data erb
Source of data Handbuch VDRG 1968/1969
Mentioned in -- Original prospect or advert (Saba Geräteprogramm 1969)


All listed radios etc. from SABA; Villingen
Here you find 1543 models, 1400 with images and 1032 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SABA; Villingen: HiFi-Studio I Stereo
Threads: 1 | Posts: 2
Hits: 2503     Replies: 1
saba: I Stereo (1 Stereo); HiFi-Studio
Alan Scott
28.Jun.10
  1

I have a Saba Stereo 1 Hi Fi Stereo.  My technician believes that the "Stereo Decoder E 16 " is damaged.  I am looking for a replacement "Stereo Decoder E 16".

Alan Scott



Mark Hippenstiel
28.Jun.10
  2

Dear Alan,

such requests are better posted to the "Market" section.

Kind regards
Mark Hippenstiel
