HiFi-Studio Telecommander 8061

SABA; Villingen

  • Year
  • 1974–1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29376
    • Brand: Schwer & Söhne, GmbH

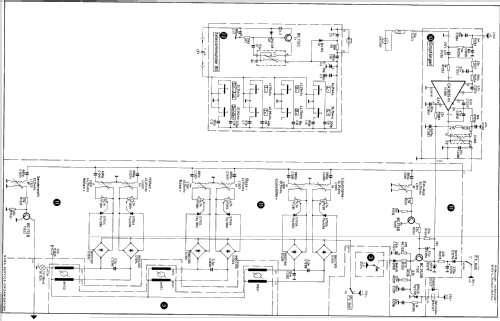

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 85
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     15 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: HiFi-Studio Telecommander 8061 - SABA; Villingen
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 660 x 140 x 300 mm / 26 x 5.5 x 11.8 inch
  • Notes
  • ICs: 2.
    HiFi-Stereo-Steuergerät; NF-Verstärker mit 2 Endstufen je 22 W (Sinus); Lautstärke, Bass und Höhen per Ultraschall-FB Telecommander 80 regelbar (Motorregler); 7 UKW Preset-Speicher; 4 Lautsprecheranschlüsse.

  • Net weight (2.2 lb = 1 kg)
  • 15 kg / 33 lb 0.6 oz (33.04 lb)
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
