HiFi Tieftonlautsprecher 400

SABA; Villingen

  • Year
  • 1967–1971
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 296791
    • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 40 cm = 15.7 inch
  • Power out
  • 45 W (50 W max.)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: HiFi Tieftonlautsprecher 400 - SABA; Villingen
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 400 x 400 x 170 mm / 15.7 x 15.7 x 6.7 inch
  • Notes

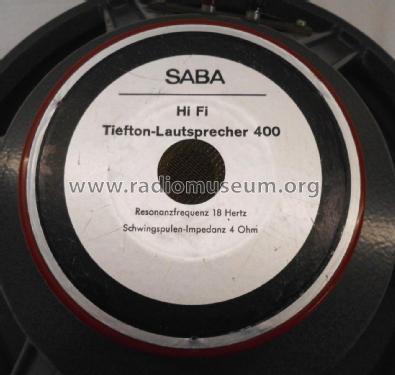

  • Saba HiFi Tieftonlautsprecher 400

    Tieftonlautsprecher ø 400 mm mit weicher Membranaufhängung. Aluminium Druckgusschassis, Membrandurchmesser 375 mm, Schwingspule 63 mm.
    Luftspaltinduktion 10500 Gauss, magnetischer Fluss 210.000 Maxwell.
    Frequenzumfang 12 - 3000 Hz, empfohlener Einsatzbereich 12 bis etwa 120 - 300 Hz, Eigenresonanz 18 Hz, Belastbarkeit (in Box eingebaut) 45 Watt sinus, 50 Watt Musik, empfohlenes Einbauvolumen ca 100 l.

    Wurde in die Saba_Box_V (5) und 850F eingebaut aber auch als Einzelteil angeboten.

    Verkaufspreis (ein nacktes Lautsprecherchassis) DM 248,- (1967) für den Saba  Tieftonlautsprecher_300  wurden "nur" DM 98,- verlangt


  • Net weight (2.2 lb = 1 kg)
  • 7.1 kg / 15 lb 10.2 oz (15.639 lb)
  • Price in first year of sale
  • 248.00 DM
  • Mentioned in
  • -- Original-techn. papers. (Saba Service-Instruction HiFi 112 Jan. 1969)
  • Literature/Schematics (1)
  • HiFi Jahrbuch 3 (1967)
  • Author
  • Model page created by Michael Lienhop. See "Data change" for further contributors.
