• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1974/1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29380

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

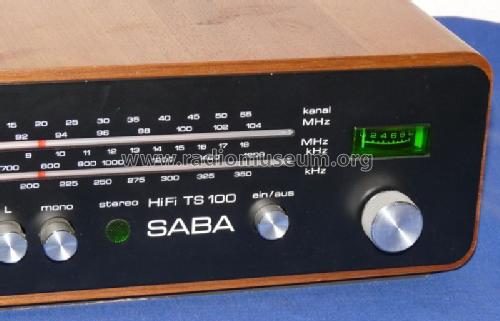

• Model: TS100 - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 415 x 110 x 280 mm / 16.3 x 4.3 x 11 inch

• Notes
• HiFi-Stereo-Tuner. 5 + 1 Stationstasten für UKW.
  Gehäuse: Nussbaum, naturhell mattiert oder mattweiss oder metallic.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 500.00 DM

• External source of data
• Erb

• Source of data
• Katalog RFP 1974
