Konstanz Stereo automatic H Mod. KN-H
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1973–1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29120
-
- Brand: Schwer & Söhne, GmbH

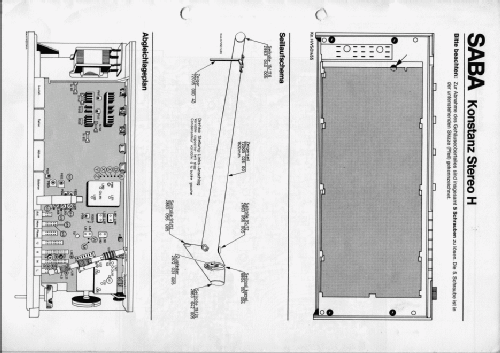

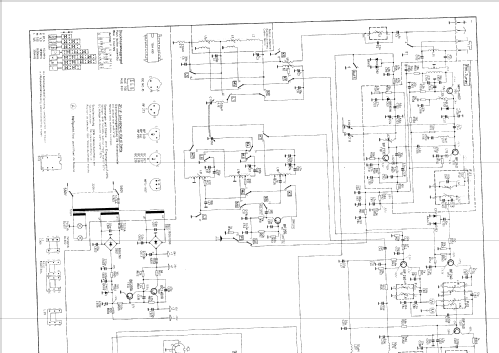

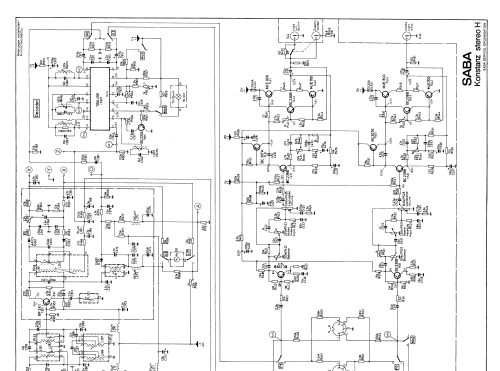

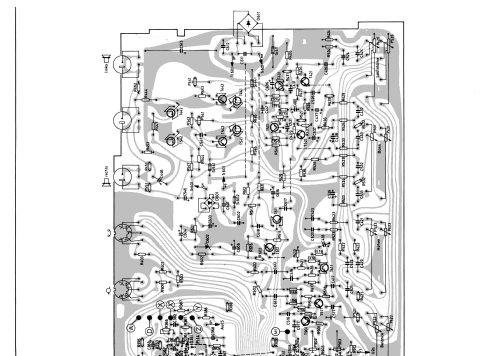

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 23
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (max.)
- Material
- Wooden case
- from Radiomuseum.org

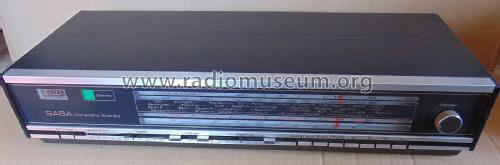

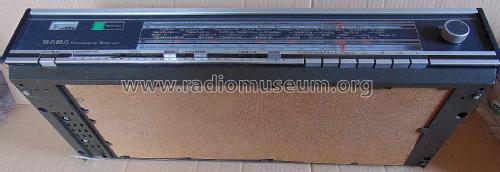

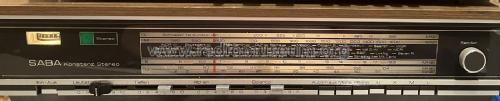

- Model: Konstanz Stereo automatic H Mod. KN-H - SABA; Villingen
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 590 x 120 x 235 mm / 23.2 x 4.7 x 9.3 inch
- Notes
-
Stereo-Steuergerät, 23 Transistoren und 1 IC. 4 Wellenbereiche UKW, KW (49...16m-Band), MW, LW. 2 eisenlose Gegentakt-Endstufen mit je 10W Spitzenleistung (Musik). Zwei LS-Boxen (160×240×130 mm) im Lieferumfang.
Ausführungen: nußbaumfarben, mattweiss und schwarz.
Wird im Prospekt und VDRG-Katalog "Konstanz Stereo automatic" genannt, in techn. Unterlagen "Konstanz Stereo H"
Rückwand zusätzlich mit Prägung Mod. KN-H versehen.
- Net weight (2.2 lb = 1 kg)
- 5.8 kg / 12 lb 12.4 oz (12.775 lb)
- Price in first year of sale
- 498.00 DM
- External source of data
- Erb
- Source of data
- Katalog RFP 1973
- Mentioned in
- Handbuch VDRG 1973/1974
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (2)
- -- Original prospect or advert
