radiomuseum.org
Please click your language flag. Bitte Sprachflagge klicken.

Konstanz Stereo E Mod. KN-E

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 52188) Radio

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 52189) Radio

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 52190) Radio

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 244789) Radio

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 244790) Radio

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 1910702) Radio

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 1910704) Radio

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 1910815) Radio

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 1910816) Radio

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 1910871) Radio
Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 328958) Radio Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 328960) Radio
Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 233690) Radio Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 34000) Radio
Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 233689) Radio Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 271237) Radio
Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 328959) Radio Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 328965) Radio
Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 510894) Radio Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 622272) Radio
Use red slider bar for more.

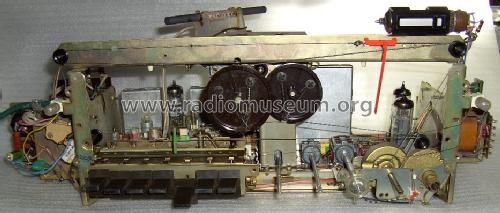

Konstanz Stereo E Mod. KN-E; SABA; Villingen (ID = 328958) Radio

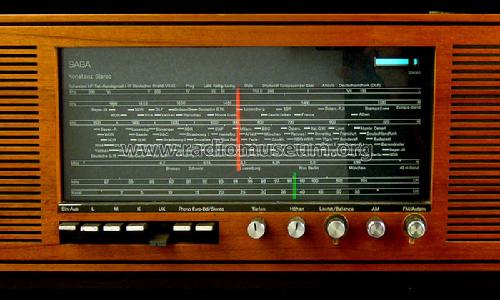

SABA; Villingen: Konstanz Stereo E Mod. KN-E [Radio] ID = 328958 933x455
Select picture or schematic to display from thumbnails on the right and click for download.
For model Konstanz Stereo E Mod. KN-E, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EAF801 ECL86 EMM803 ECL86
Semiconductors (the count is only for transistors) 6: AF121 AF126
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Konstanz Stereo E Mod. KN-E - SABA; Villingen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 735 x 240 x 220 mm / 28.9 x 9.4 x 8.7 inch
Notes Transistoren: AF121, 5×AF126S.
Vollstereo, NF-Verstärker mit zwei Endstufen je 6 W. 5 Bereiche: LW / 2× MW (520-1620 kHz und Europaband 1350-1600 kHz) / KW (49 m) / UKW.
Die Angabe der Gehäusebreite im Handbuch VDRG 1968 von 660mm entspricht nicht dem tatsächlichen Maß von 735mm.
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 448.00 DM
External source of data erb
Source of data Handbuch VDRG 1968/1969

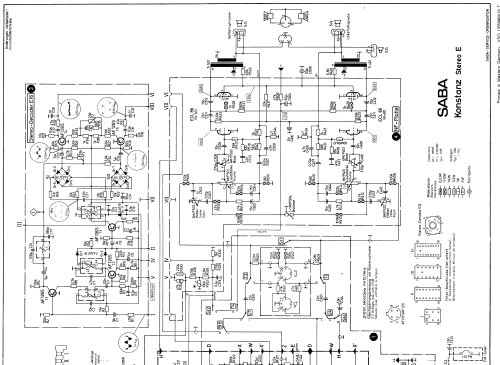

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from SABA; Villingen
Here you find 1598 models, 1445 with images and 1097 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





rmXorg
