For model HiFi-Lautsprecherbox QX30K, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1972–1977 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers

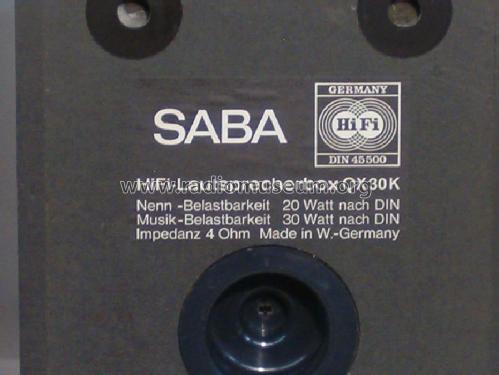

Power out 20 W (30 W max.)
from Radiomuseum.org Model: HiFi-Lautsprecherbox QX30K - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 270 x 180 x 180 mm / 10.6 x 7.1 x 7.1 inch
Notes

2-Weg-HiFi-Lautsprecherbox.

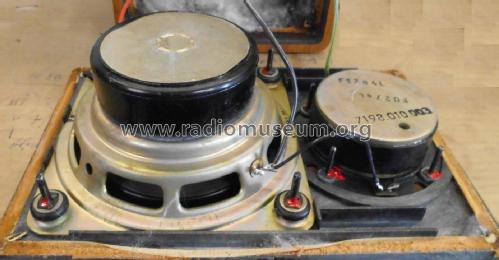

Tieftonlautsprecher mit weicher Membranaufhängung, Ø 145 mm.
Kalotten - Mittelhochtonlautsprecher Ø 95 mm.
Frequenzbereich: 50 bis 20.000 Hz nach DIN 45500,  Impedanz 4 Ω, Übernahmefrequenz 1600 Hz, Volumen, eff. 5,5 l.

Net weight (2.2 lb = 1 kg) 4.1 kg / 9 lb 0.5 oz (9.031 lb)
Price in first year of sale 198.00 DM
Mentioned in Original Saba Service Unterlagen
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
