Memo Clock C

Memo Clock C; SABA; Villingen (ID = 147032) Radio

Memo Clock C; SABA; Villingen (ID = 147033) Radio

Memo Clock C; SABA; Villingen (ID = 2039060) Radio

Memo Clock C; SABA; Villingen (ID = 2039061) Radio

Memo Clock C; SABA; Villingen (ID = 2039063) Radio

Memo Clock C; SABA; Villingen (ID = 2039143) Radio

Memo Clock C; SABA; Villingen (ID = 2039144) Radio
Memo Clock C; SABA; Villingen (ID = 543513) Radio Memo Clock C; SABA; Villingen (ID = 543511) Radio
Memo Clock C; SABA; Villingen (ID = 543512) Radio Memo Clock C; SABA; Villingen (ID = 146813) Radio
Memo Clock C; SABA; Villingen (ID = 543514) Radio Memo Clock C; SABA; Villingen (ID = 543515) Radio
Memo Clock C; SABA; Villingen (ID = 543516) Radio Memo Clock C; SABA; Villingen (ID = 543517) Radio
Use red slider bar for more.
Memo Clock C; SABA; Villingen (ID = 543513) Radio

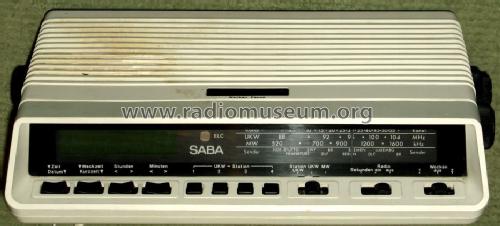

SABA; Villingen: Memo Clock C [Radio] ID = 543513 933x422
Select picture or schematic to display from thumbnails on the right and click for download.
For model Memo Clock C, SABA; Villingen:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1980 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16:
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 220; (1,2) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Memo Clock C - SABA; Villingen
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes ICs: MK50366N, TBA820M, MC14069UB, MC14081, 78L12AWC; Dioden: 51; keramische Filter für AM und FM; 2 Sensortasten, 4 FM-Tasten, LED-Display, Helligkeitsregelung mit LDR.
Literature/Schematics (1) -- Original-techn. papers. (SABA Service-Instruction "R 166")

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from SABA; Villingen
