• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1983/1984

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 128798

• • Brand: Schwer & Söhne, GmbH

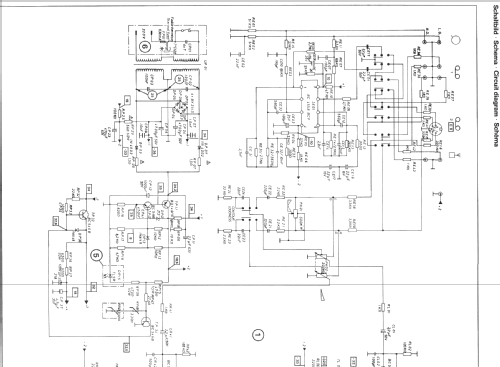

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (80 W max.)

• Material
• Metal case

• from Radiomuseum.org

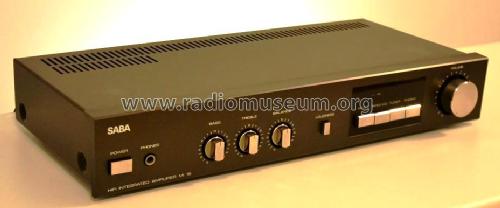

• Model: MI 15 - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 80 x 250 mm / 17.3 x 3.1 x 9.8 inch

• Notes

• 1 IC

  2 x 25 W Sinusleistung / 8 Ohm
  2 x 40 W Musikleistung / 8 Ohm
  Klirrfaktor 0,02% (1 kHz)

  Stromversorgungsausgang für Saba MT 15 und CD 15, 20 Volt / 500 mA

• Source of data
• -- Original prospect or advert

• Mentioned in
• Original Saba Service Unterlagen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
