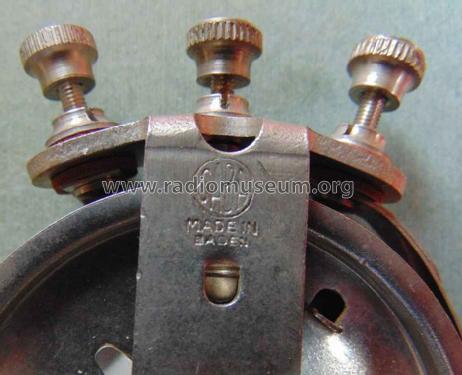

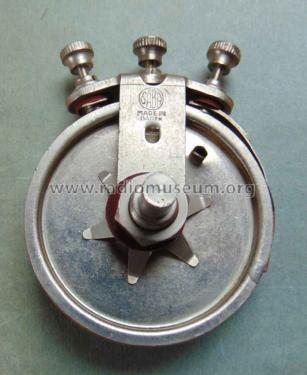

Potentiometer P1 P2 P3 P4 P5 P6 P8 P10
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1927 ??
- Category
- Radio part (not a module)
- Radiomuseum.org ID
- 263893
-
- Brand: Schwer & Söhne, GmbH
Radio-Diehr 1928/29 Seite 170
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Potentiometer P1 P2 P3 P4 P5 P6 P8 P10 - SABA; Villingen
- Dimensions (WHD)
- 53 x 65 x 40 mm / 2.1 x 2.6 x 1.6 inch
- Notes
-
8 Typen : P1 100 Ohm steigend um je 100 Ohm auf P6 mit 600 Ohm sowie P8 (800 Ohm) und P10 (1000 Ohm) : Preis 1928/29 bei Radio-Diehr 3,90 RM , P8 und P10 4,05 RM
- Net weight (2.2 lb = 1 kg)
- 0.080 kg / 0 lb 2.8 oz (0.176 lb)
- Mentioned in
- Radio-Diehr 1928/29 Seite 170
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
