• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1972–1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133806

• • Brand: Schwer & Söhne, GmbH

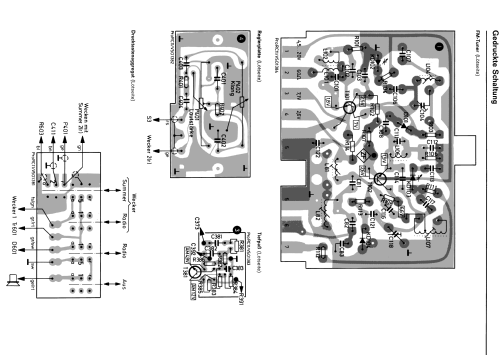

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 4 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Pro RC11 Electronic H - SABA; Villingen

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 255 x 140 x 180 mm / 10 x 5.5 x 7.1 inch

• Notes
• ICs: 2.
  Saba Uhrenradio Pro RC11 Electronic H.
  UKW-Diodenabstimmung mit 4 Stationstasten, AM-Diodenabstimmung mit 3 Stationstasten. Ovallautsprecher mit innenliegendem Magneten (9 x 14 cm). Tonregler. Weckruf wahlweise über Radio oder Summer möglich. Ferritantenne (20 cm). Kopfhöreranschluß an der Rückseite (Klinke 3,5 mm).

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Funk-Technik (FT) (5/1972, S. 159, 160 / Neuvorstellung, Beschreibung, Teilschema)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
