• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 212299

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220; 6 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 16 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 4 Band Radio Double Cassette Recorder RCR-980 - SABA; Villingen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 490 x 260 x 150 mm / 19.3 x 10.2 x 5.9 inch

• Notes
• Saba 4 Band Radio Double Cassette Recorder Modell RCR-980 (Boombox).
  High Speed Dubbing, Tape1 Play, Tape2 Record & Play. Teleskop-Antenne.

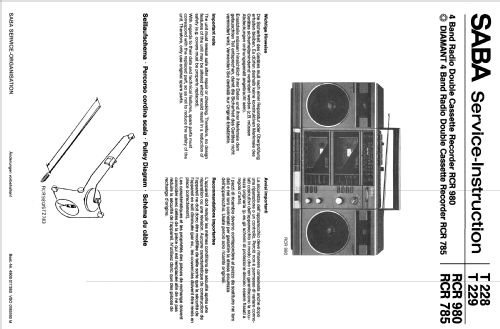

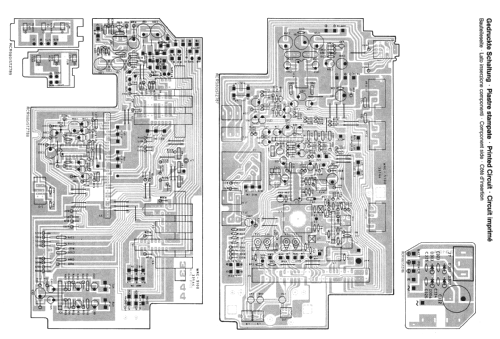

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
