Sandy Automatic G

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80618

• • Brand: Schwer & Söhne, GmbH

• Picture

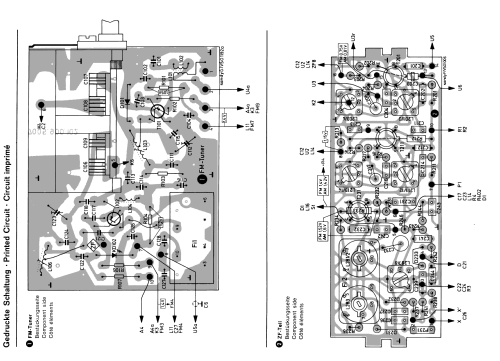

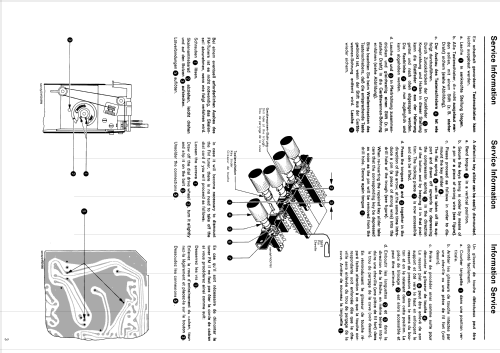

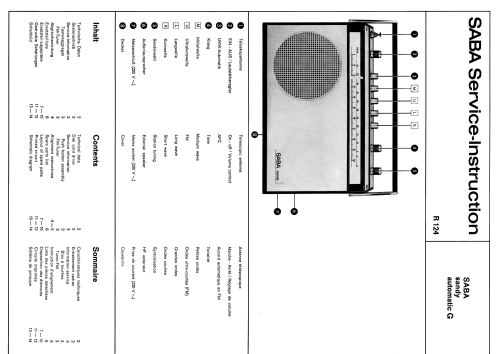

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF121 BC173 BC170 or. BC172 AC187 AC188 AC117 OA90 BB103 AA116 ZE1,5 ZF6,2 BZX62 Si-Br-Gl

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Power out
• 1.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Sandy Automatic G - SABA; Villingen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 165 x 75 mm / 10.6 x 6.5 x 3 inch

• Notes

• Halbleiter teils mehrfach vorhanden.

  Frequenzen:

  UKW: 87,5 - 104 MHz
  KW: 5800 - 12500 kHz
  MW: 510 - 1630 kHz
  LW: 150 - 260 kHz

  Im Handbuch VDRG 1970/71 nur mit Sandy Automatic bezeichnet. Der Zusatz G steht jedoch für den Jahrgang 1970/71.

  Verfügbare Farben: brillantweiß, caramel, bahiarot, panther-schwarz.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Handbuch VDRG 1970/1971

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
