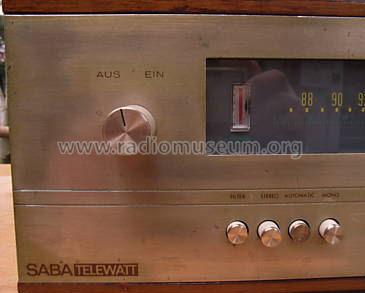

Telewatt FM-2000/A

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26737

• • Brand: Schwer & Söhne, GmbH

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 27

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 18 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Telewatt FM-2000/A - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 145 x 300 mm / 16.5 x 5.7 x 11.8 inch

• Notes
• HiFi-Stereo-Tuner.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 1,578.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967
