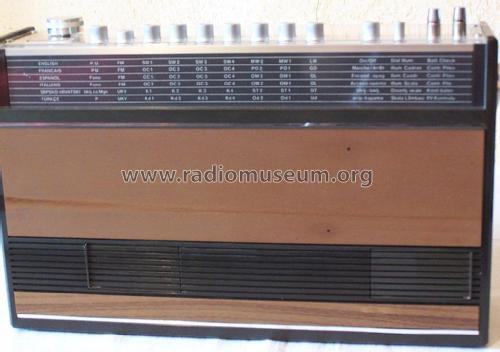

Transall de Luxe automatic G; SABA; Villingen (ID = 2454930) Radio
SABA; Villingen: Transall de Luxe automatic G [Radio] ID = 2454930 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transall de Luxe automatic G, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1971–1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 23:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 10 AM circuit(s)     14 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 9 Volt
Loudspeaker 2 Loudspeakers
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Transall de Luxe automatic G - SABA; Villingen
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 375 x 235 x 105 mm / 14.8 x 9.3 x 4.1 inch
Notes 8 Wellenbereiche: LW 150-360 kHz, MW1 510-1100 kHz, MW2 1070-1600 kHz, KW1 5,9-18,5 MHz (16-50 m), KW2 1,6-6 MHz (50-180 m), KW3 14,9-15,6 MHz (19 m), KW4 5,9-6,24 MHz (49 m), UKW 87,5-104 MHz. 6 UKW Stationstasten, 15 Dioden, 1 Glr. 5 Stabilisatoren. Gewicht ohne Batt. DIN-Eingangsbuchse für TA. Ferritant. für LW/MW, Rahmenant. für KW, 2 Teleskopant. für UKW/KW, Feldstärkeinstrument. Ausgangsleistung b. Batt. 4 Watt, bei Netzbetr. 8 Watt.
Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Price in first year of sale 448.00 DM
External source of data Mitglied hat gemeldet
Source of data Handbuch VDRG 1971/1972
Mentioned in -- Original-techn. papers.

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
